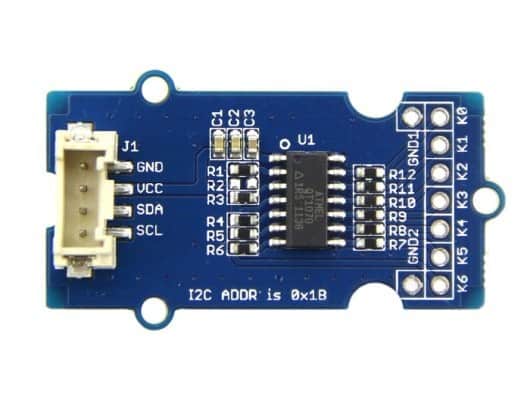

The Q Touch Sensor is a high sensitivity and high noise immunity touch input device.It is based on Atmel AT42QT1070. The AT42QT1070 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1070 uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin. Specification Operating Voltage: 3 ~ 5.5V Operating Current @3.3V: 1mA Touch Keys: 7 Keys ; key0 ,key1 ,key2 are on the Grove PCB bottom side Communicating Protocol: I2C I2C Address: 0x1B Technical details Dimensions 140mm x 85mm x 10.8mm Weight G.W 8g Battery Exclude Includes Grove – Q Touch Sensor X 1 Related
