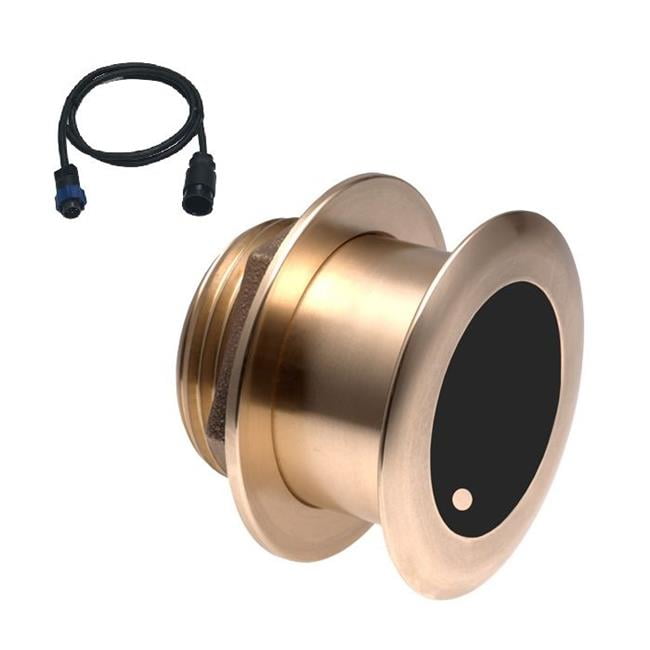

Airmar AIRB175C0HBL 0D Tilt Transducer with Navico 7-Pin MM Cable

The transducer’s ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairing. Flush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer’s active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down. Features Depth & fast-response water-temperature sensor High-chirps from 150 khz to 210 khz Boat size: 8 m (25′) and above 80 khz of total bandwidth from one transducer Covers popular fishing frequency of 200 khz plus everything else in the bandwidth Hull type: fiberglass or wood It is made from quality materials and has been tested in a rigurous quality control process Designed to deliver trouble-free, consistent performance Includes B175C-0-H-MM Transducer MMC-BL Mix and Match Cable Specifications Deadrise: 0 deg to 7 deg Acoustic Window: Urethane Power Rating: 1 kW @ 1% duty cycle Frequency: 130 to 210 kHz-A (Broadband) Beam: 10 deg to 6 deg beam Max Depth: 1000ft. Weight: 15 lbs – SKU: WTNAVGP218267 Brand: Airmar Manufacturer Part Number: AIRB175C0HBL Manufacturer: Airmar
